TMMS 380
Tri-section pulling plate

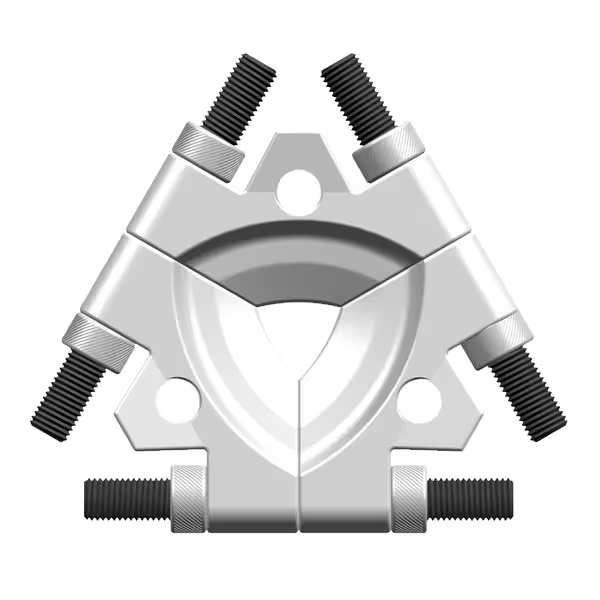

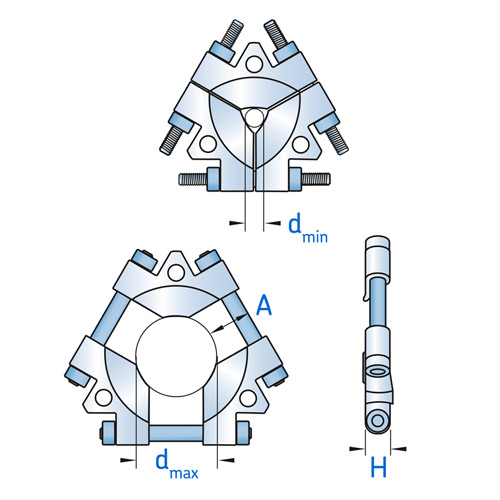

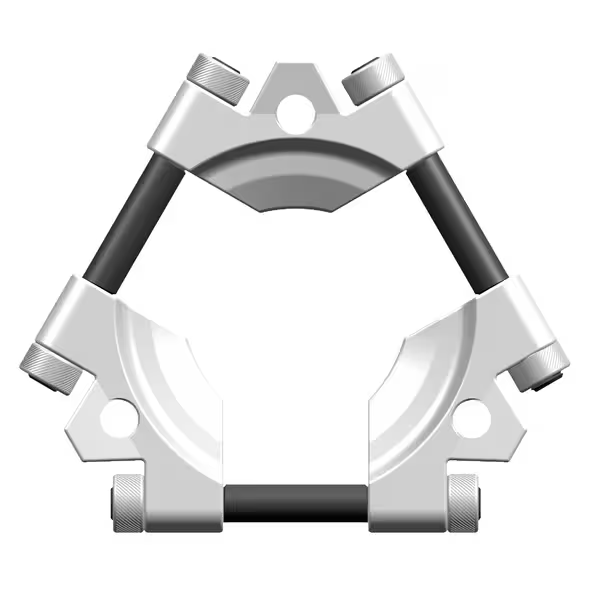

The tri-section pulling plate TMMS 380 is especially designed for use in combination with three-armed bearing pullers. The plate grips behind the inner ring of the bearing and prevents the pulling forces from being transmitted through the bearing, minimizing the risk of bearing damage.
- Efficient bearing dismounting with unique design to direct dismounting forces directly to the bearing inner ring
- No bearing damage from dismounting forces transmitted through the bearing outer ring and rolling elements
- Even force distribution prevents the bearing from locking or tilting during dismounting
- Wedge shape allows the plates to be easily inserted between bearing and the shoulder on the shaft
- Suitable for use in combination with any three-armed bearing puller
Recommended applications: For use with a puller in the dismounting of bearings, gears, pulleys and other industrial ring-shaped components with an interference fit on the shaft, where the claws of the puller cannot grip the component properly.
