SKF THAP 400E/K10 Air-driven hydraulic pump with accessories 4000 bar

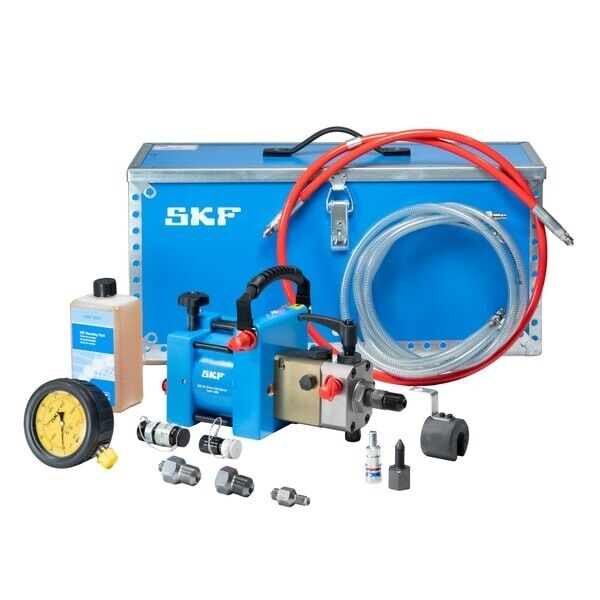

The SKF THAP 400E/K10 set consists of the THAP 400E air-driven pump with accessories, including a pressure gauge, high pressure hose with quick connection couplings and connection nipples. Delivered in a wooden carrying case, it is suitable for mounting and dismounting OK-couplings and large pressure joints such as bearings, flywheels and railway wheels. Delivered with a 1 litre can of SKF Mounting fluid LHMF 300.

• Complete set for the required task at hand
• By using air-driven pumps instead of hand-operated equipment, a considerable amount of time can be saved
• Easy to connect to the application
• Easy and quick generation of pressure up to 4,000 bar

• OK Couplings
• Large pressure joints
• Oil injection for large gears and railway wheels

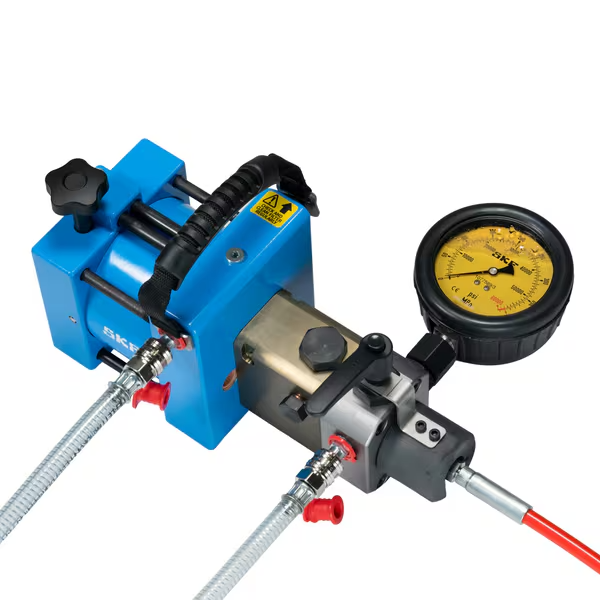

• Air driven pump 400 MPa (58,000 psi)
• 2x Low pressure hoses with couplings (1.5 m / 4.9 ft)
• Air hose coupling (f)
• Mounting fluid (1 ltr / 0.22 gal)
• Pressure gauge, 400 MPa (58,000 psi) with protection sleeve (TMJG S100)
• Protection device
• Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58,000 psi)
• High pressure hose, 400 MPa (58,000 psi), 2x M16x1.5 cone male, 2 m (6.5 ft)
• Quick connection coupling, M16x1.5 cone female, 400 MPa (58,000 psi)
• Quick connection nipple, M16x1.5 cone female, 400 MPa (58,000 psi)
• Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58,000 psi)
• Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58,000 psi)
• Instructions for use
• Carrying case
