SKF TMHP 10E hydraulic puller

Hydraulic jaw puller kit

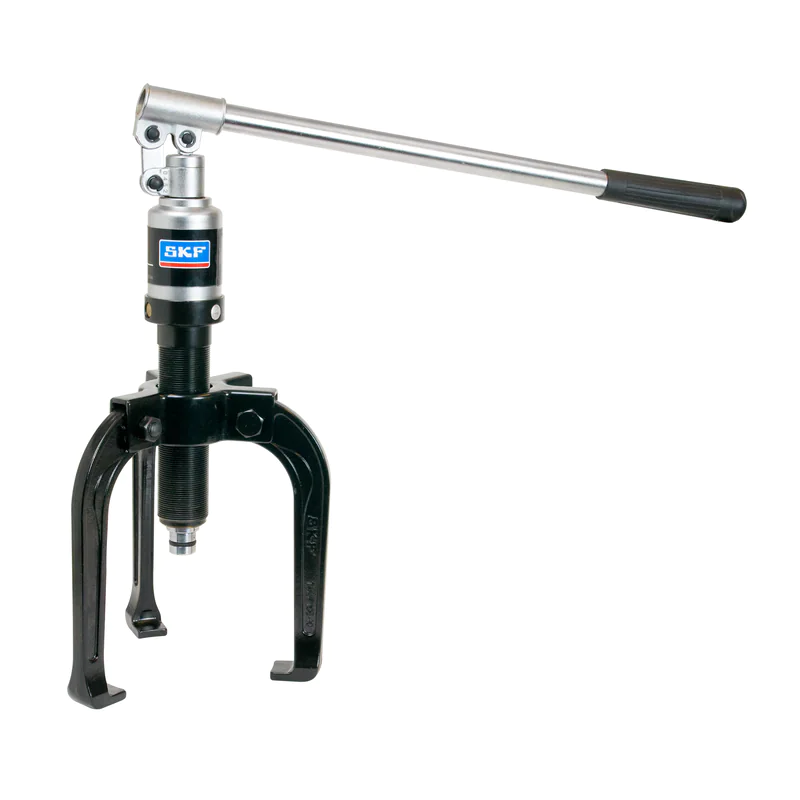

The TMHP 10E is a complete puller kit for bearing dismounting. The kit includes three different arm sets that can be used in a 2-arm or 3-arm configuration. The puller uses a hydraulic spindle for easy dismounting with dismounting forces up to 100 kN (11.2 US ton). With a stroke of 80 mm (3.1 in.), the spindle facilitates dismounting in one operation. Safety is supported through self-locking arms, a spring-loaded centre point, and a safety valve to prevent puller overload.

  • Versatile kit with three different arm lengths usable in 2-arm or 3-arm configuration
  • Effortless dismounting with hydraulic spindle
  • Self-locking arms minimise risks of slippage under load
  • Spring-loaded centre point allows easy puller centring
  • Supplied with three hydraulic spindle extension pieces to allow quick adaptation to required pulling length
  • Hydraulic spindle is equipped with safety valve to prevent puller overload

Recommended applications:

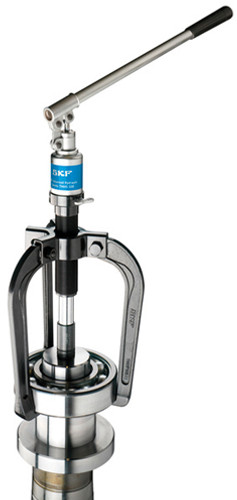

For dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit on the shaft.

Content:
  • 1 x arm-assembly stand
  • 3 x arms, set 1 (TMHP 10E-10)
  • 3 x arms, set 2 (TMHP 10E-11)
  • 3 x arms, set 3 (TMHP 10E-12)
  • 1 x hydraulic spindle TMHS 100 (with handle bar)
  • 3 x extension pieces for hydraulic spindle: 50, 100, 150 mm
  • 1 x nosepiece with centre point for hydraulic spindle
  • IFU QR Code card
  • Case
