SKF TKSA 31 Wired laser shaft alignment system Easy measurements easy to use
Tiempos de entrega estimados: 3-5 días Internacional.
Envío y devoluciones gratis:
Date prisa, solo quedan 1 item(s) artículos en stock
No se pudo cargar la disponibilidad de recogida
Descripción
Envíos y devoluciones
Políticas de devolución
Combina bien con

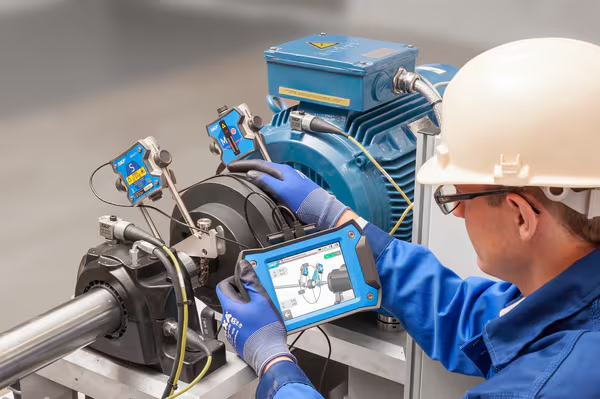

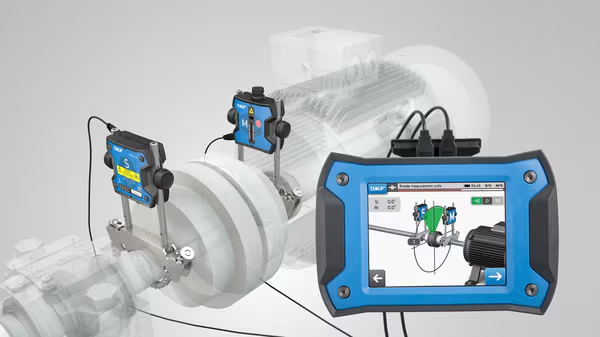

The TKSA 31 has an ergonomic display unit with touch screen which makes the instrument very easy to use. The built-in machine library helps storing alignment reports for multiple machines. Large sized laser detectors in the measuring heads reduce the need for pre-alignments. The embedded soft foot tool helps establish the foundation for a successful alignment. Additional functions are live view and automatic measurement.
- Easy measurements with well-known three position measurement method (9-12-3 o'clock) with additional positioning flexibility of 40° around each measurement position
- Focus on standard alignment process results in high affordability and effective shaft alignments
- Automatic measurement enables hands-free measurements by automatic detection of the right measurement position
- Automatic reports are created after each alignment and stored in the machine library. All reports can be exported as pdf
- Set of 2 Measuring units (M and S)
- Display unit
- Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in)
- Chain tightening rod
- Power supply with various country adapters
- Set of 2 USB cables
- Measuring tape
- Certificate of calibration and conformance
- Quick start guide
- SKF carrying case
Alignment methods:
- 3 position measurement 9-12-3 (140° shaft rotation needed)
- Automatic measurement
