SKF TKBA 11 alignment tool

Basic belt alignment, pulley side, red laser, 1 laser unit

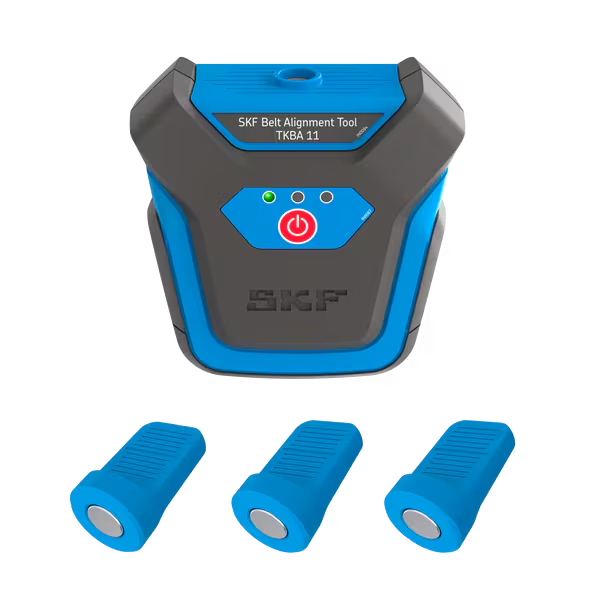

The belt alignment tool TKBA 11 has two components; a laser-emitting unit and three passive targets. Each is attached quickly and easily – using a powerful magnet – to the inside or outside face of a belt pulley or chain sprocket. The TKAB 11 alignment tool can be applied to most machines that use V belts, banded belts and ribbed belts – as well as those with chain sprockets.

  • Fast, easy attachment with powerful magnets
  • Simplified alignment process - - one laser emitter with three passive targets
  • Simultaneous adjustment of tension and alignment
