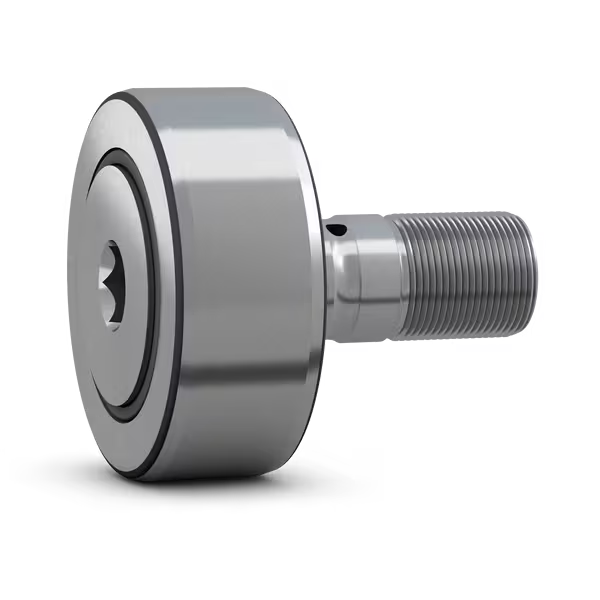

NUKRE 90 A
Cam follower (stud-type track roller) with eccentric collar, integral sealing and relubrication feature

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.

  • High radial load carrying capacity
  • Accommodate relatively heavy axial loads due to skew or tilting
  • Long service life
  • Easy to mount
  • Sealed for increased reliability, with relubrication feature
