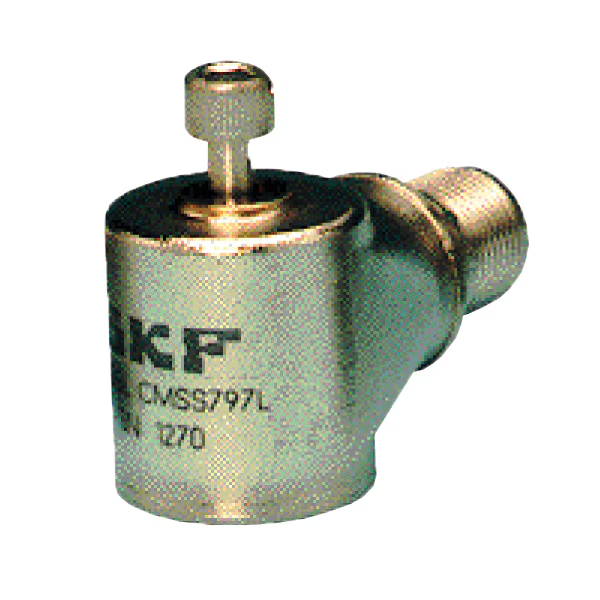

CMSS 797L
Low frequency industrial accelerometer, ring mode, with side exit

This industrial accelerometer is intended for higher precision raw acceleration measurements at rotational frequencies as low as 12 rpm. These speeds are commonly found in many applications including grinding mills and conveyor gearboxes. The sensor is optimal for use with SKF on-line systems and portable data collection instruments. The sensor should not be used for SKF acceleration enveloping measurements.

  • High vibration sensitivity (to reveal low amplitude signals)
  • Ultra low-noise electronics for clear signals at very low vibration levels
  • Low-pass filtered to attenuate high frequencies
  • Hermetically sealed
Features:
  • Optimal for use with SKF on-line surveillance and protection systems and all portable data collection instruments
  • 500 mV/g high sensitivity
  • Ultra low-noise electronics for clear signals at very low vibration levels
  • Low-pass filtered to attenuate high frequencies
  • Hermetically sealed
  • ESD protection
  • Reverse wiring protection
