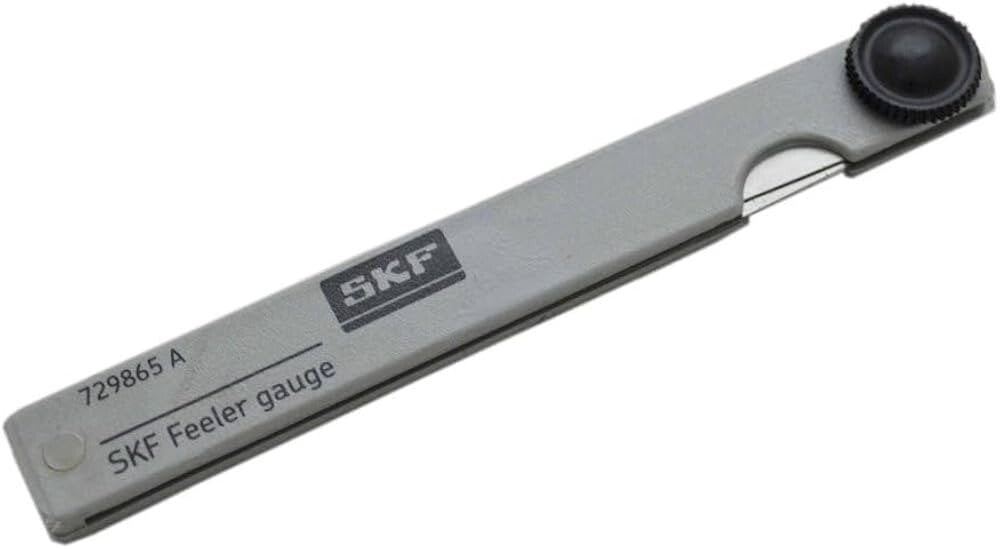

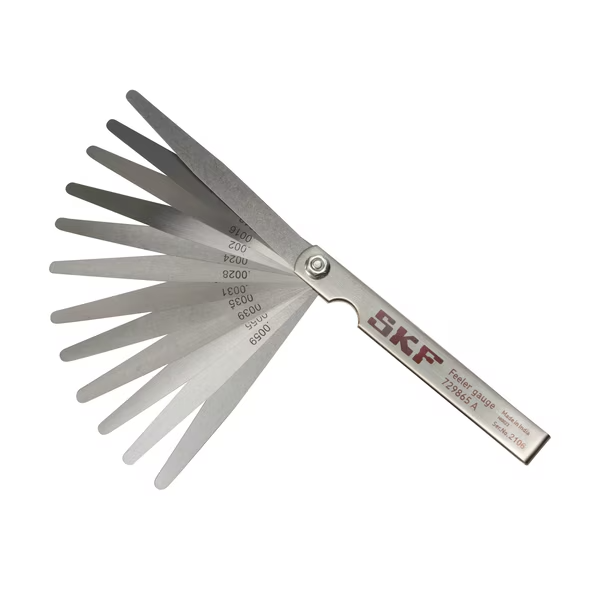

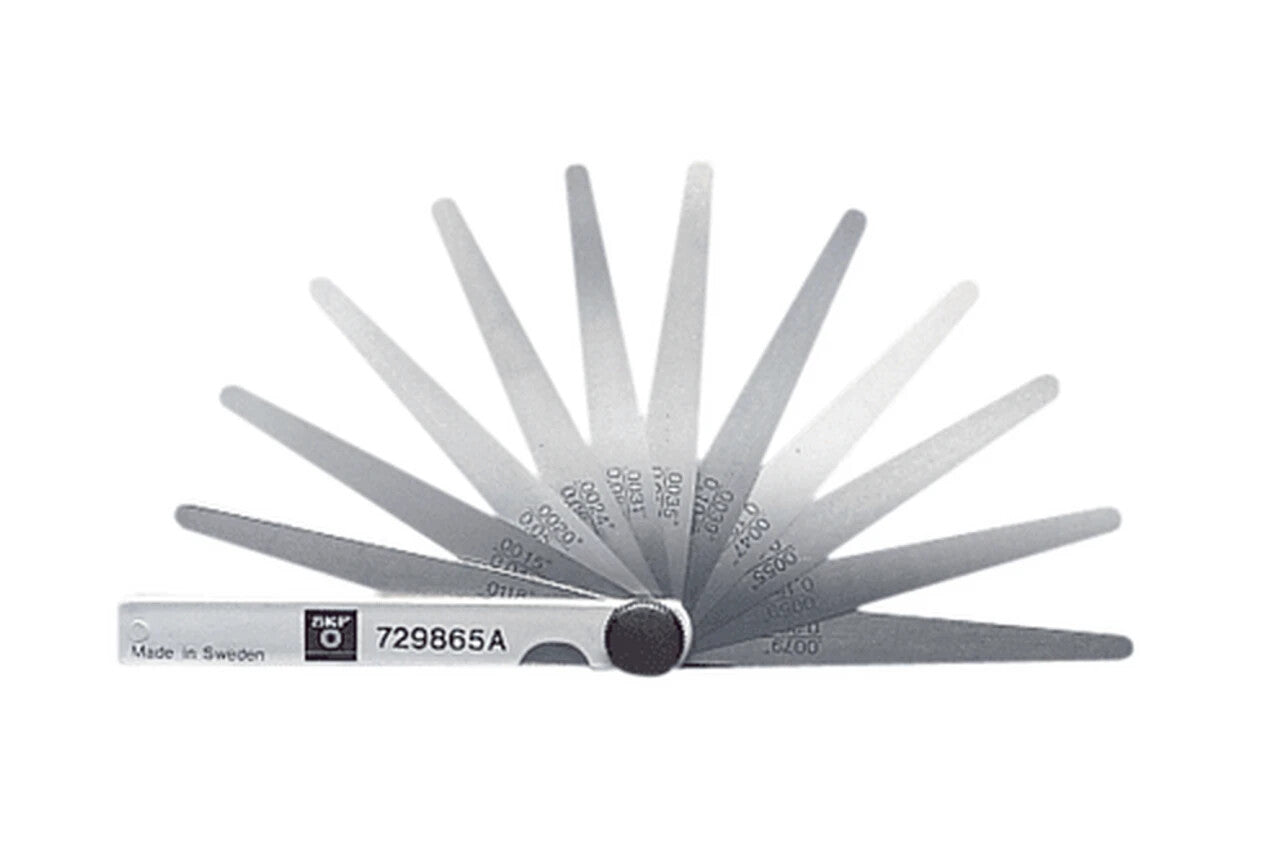

SKF 729865 A
Feeler gauge with 13 short blades
SKF Feeler Gauges 729865 A are designed to measure clearances. A typical application is to measure the internal clearance of spherical roller bearings during the mounting process. The 729865 A consists of 13 blades of 100 mm (4 in.) in a plastic cover.
- Compact set of feeler gauges

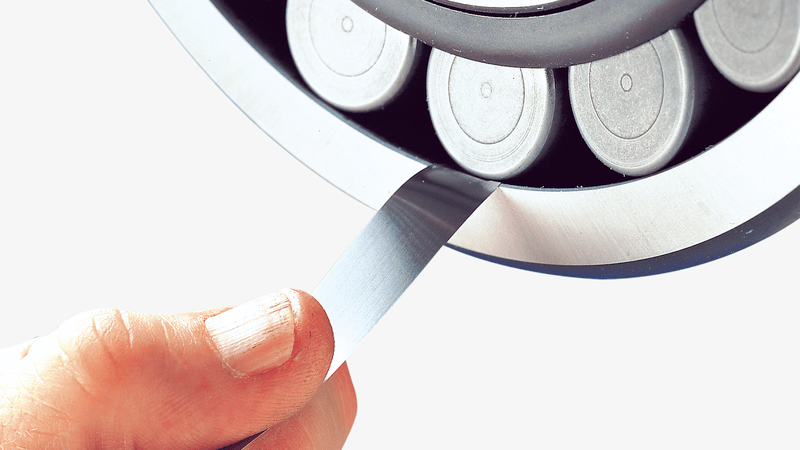

- Suitable to measure internal bearing clearance of spherical roller bearings
- 13x blades of 100 mm (4 in.) length
- Protective plastic cover
Recommended applications:
- To mount bearings without the SKF drive up method (manual way to reduce the radial internal clearance)
- For checking clearances in bearings
- For inspecting clearances in other applications
Suitable for bearing mounting on a Tapered seating (conical shaft):
Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Suitable for bearing mounting on a Sleeve (adapter or withdrawal):
Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.
Blade thickness:
0.03 mm / 0.04 mm / 0.05 mm / 0.06 mm / 0.07 mm / 0.08 mm / 0.09 mm / 0.10 mm / 0.12 mm / 0.14 mm / 0.15 mm / 0.20 mm / 0.30 mm
Blade thickness tolerances:
For blades with thickness (up to and including) 0.10 mm: +0.007 / -0.005 mm
For blades with thickness larger than 0.10 mm: +0.010 / -0.005 mm
Special features:
- Protective stainless steel housing
- Each blade marked with its thickness
- Supplied in plastic storage cover
